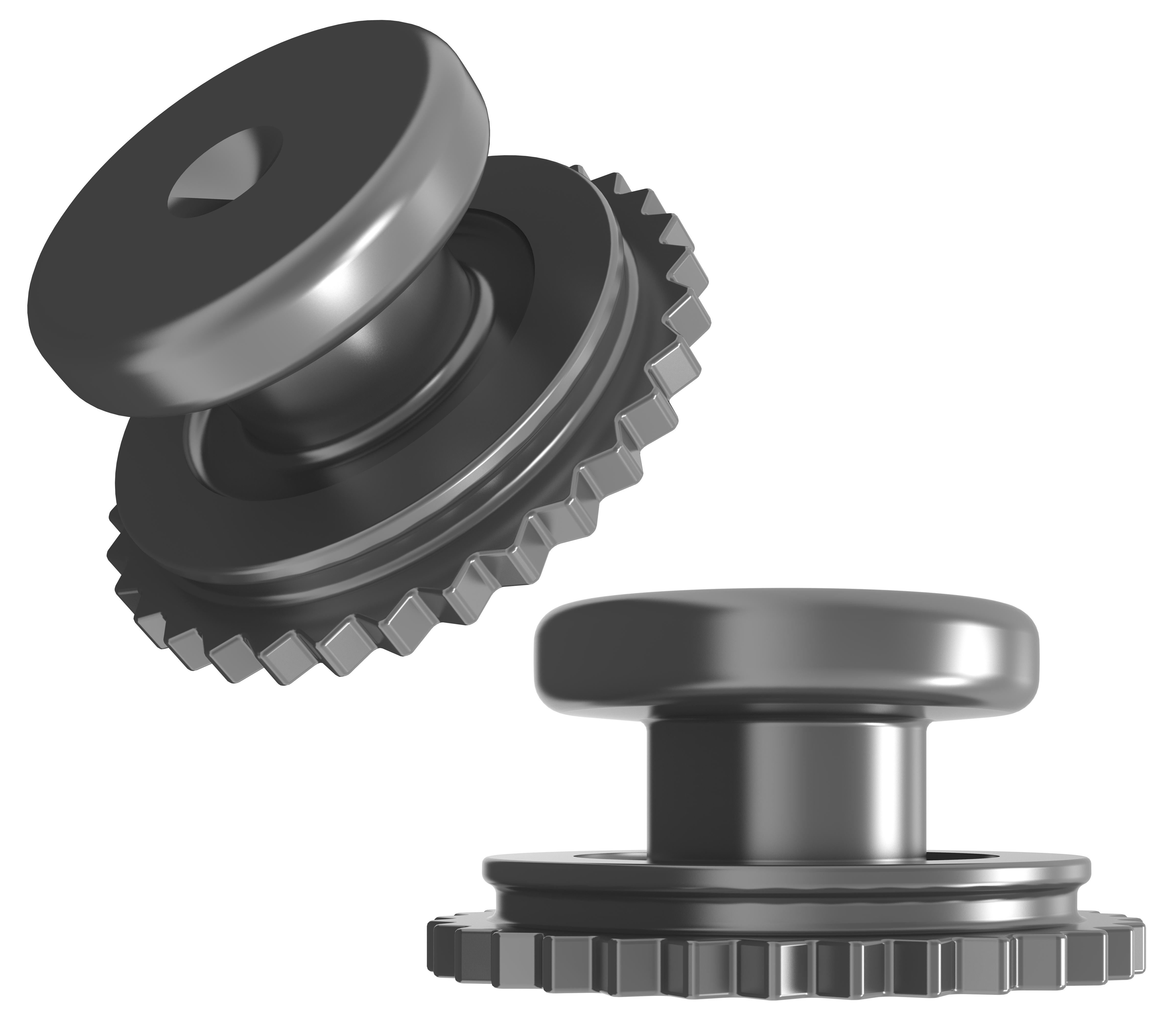

DSKS-R™ fasteners are designed to provide high side-load in vertical component mounting applications and are available for various top sheet thicknesses and hole sizes.
  • Allow detachable spacing of two sheets
  • Clinch feature mounts fastener permanently and flush or sub-flush into metal sheet
  • Unique barrel design allows for quick “panel-on-panel” attachment and detachment
  • Can be clinched into blind hole where concealed head is required
  • Makes horizontal or vertical component mounting possible
Unit of Measure

Panel 1 (Bottom) Thickness Range

 N/A 1 to 1.19 mm

Panel 1 (Bottom) Mounting Hole B + 0.08

 N/A 5.41 mm

Panel 2 (Top) Sheet Thickness Max.

 N/A 1.04 mm

Panel 2 (Top) Mounting Hole A1 Nom.

 N/A 1.5 mm

Panel 2 (Top) Mounting Hole A2 ± 0.08

 N/A 3 mm

Panel 2 (Top) Mounting Hole A3 ± 0.08

 N/A 5 mm

Panel 2 (Top) Mounting Hole A4 Min.

 N/A 3.75 mm a1326.jpg
Panel 1 (Bottom) Sheet Hardness Max.1 N/A HRB 80 / HB 150

Panel 2 (Top) Material

 N/A Any

A Max.

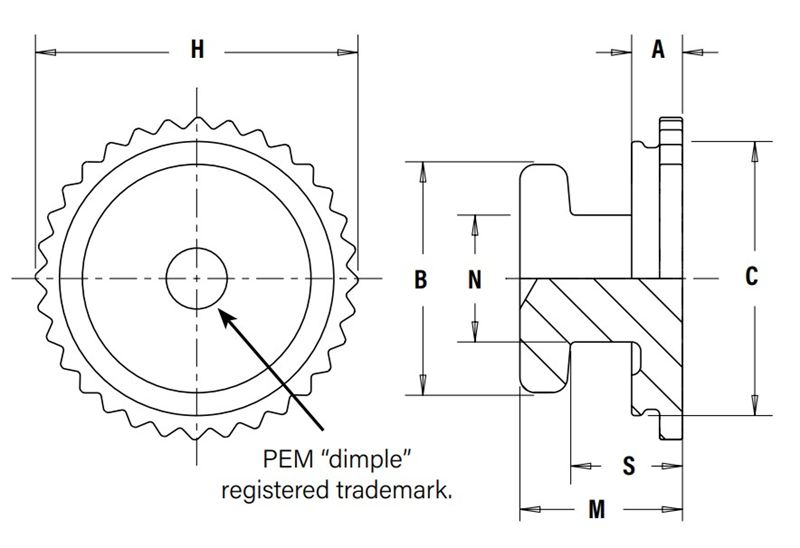

 N/A 1.00 mm DSKS-R-dimensional-drawing.jpg

B ± 0.08

 N/A 4.5 mm

C Max.

 N/A 5.4 mm

D Anvil Hole + 0.08

 N/A 4.65 mm

H Nom.

 N/A 6.35 mm

M Max.

 N/A 3.3 mm

N ± 0.08

 N/A 2.5 mm

S ± 0.08

 N/A 2.20 mm

Panel 1 (Bottom) Edge Distance C1 Min.

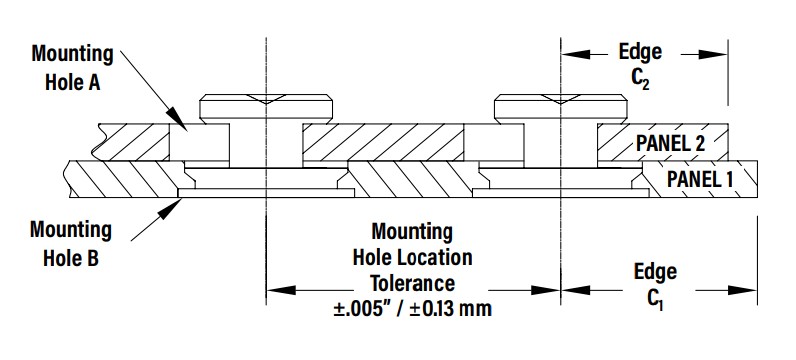

 N/A 5.5 mm DSKS-R-Panel.jpg

Panel 1 (Bottom) Location Tolerance Max.

 N/A ±.130 mm

Panel 2 (Top) Edge Distance C2 Min.

 N/A 4.1 mm

Standard Material

 N/A Hardened Steel
Standard Finish2 N/A Zinc Plated per ASTM B633, SC1 (5um) Type III, Colorless

CAD Supplier

 N/A PennEngineering® (PEM®)
  • 1 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
  • 2 See PEM Technical Support section of our web site for related plating standards and specifications.
