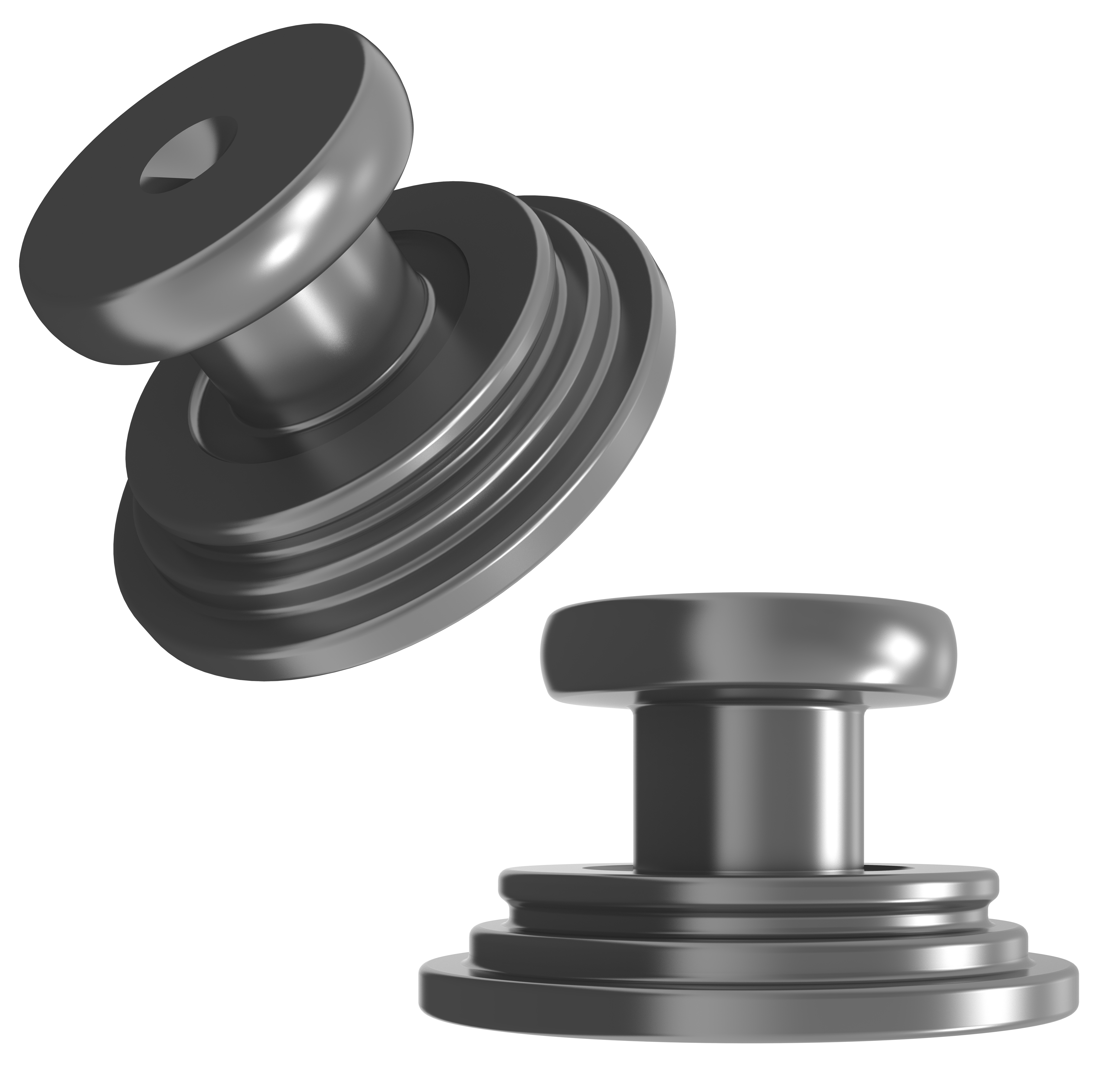

HHSKS-R™ Heavy-head fasteners are designed so that two sheets can be quickly joined flat against each other.
  • Allow detachable spacing of two sheets
  • Clinch feature mounts fastener permanently and flush or sub-flush into metal sheet
  • Unique barrel design allows for quick “panel-on-panel” attachment and detachment
  • Can be clinched into blind hole where concealed head is required
  • Makes horizontal or vertical component mounting possible
Unit of Measure

Panel 1 (Bottom) Thickness Range

 N/A 1.2 to 1.35 mm

Panel 1 (Bottom) Mounting Hole B + 0.08

 N/A 10.02 mm

Panel 2 (Top) Sheet Thickness Max.

 N/A 2.25 mm

Panel 2 (Top) Mounting Hole A1 Nom.

 N/A 2.55 mm

Panel 2 (Top) Mounting Hole A2 ± 0.08

 N/A 5.1 mm

Panel 2 (Top) Mounting Hole A3 ± 0.08

 N/A 9.5 mm

Panel 2 (Top) Mounting Hole A4 Min.

 N/A 7.1 mm a1326.jpg
Panel 1 (Bottom) Sheet Hardness Max.1 N/A HRB 80 / HB 150

Panel 2 (Top) Material

 N/A Any

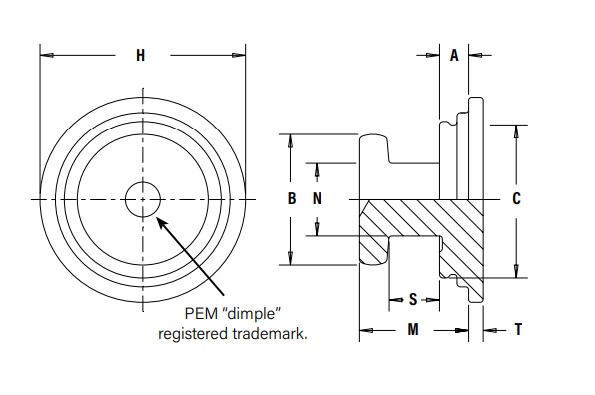

A Max.

 N/A 1.20 mm HHSKS-R-dimensional-drawing.jpg

B ± 0.08

 N/A 9 mm

C Max.

 N/A 10 mm

D Anvil Hole + 0.08

 N/A 9.15 mm

H ± 0.25

 N/A 12.5 mm

M Max.

 N/A 6 mm

N ± 0.08

 N/A 4.6 mm

S ± 0.08

 N/A 2.5 mm

T ± .13

 N/A 1.25 mm

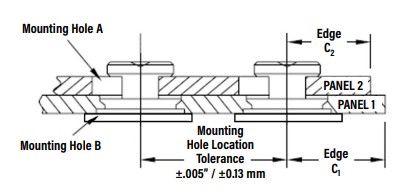

Panel 1 (Bottom) Edge Distance C1 Min.

 N/A 10.0 mm HHSKS-R-Panel.jpg

Panel 1 (Bottom) Location Tolerance Max.

 N/A ±.130 mm

Panel 2 (Top) Edge Distance C2 Min.

 N/A 7.5 mm

Standard Material

 N/A Hardened Steel
Standard Finish2 N/A Zinc Plated per ASTM B633, SC1 (5um) Type III, Colorless

CAD Supplier

 N/A PennEngineering® (PEM®)
  • 1 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
  • 2 See PEM Technical Support section of our web site for related plating standards and specifications.
