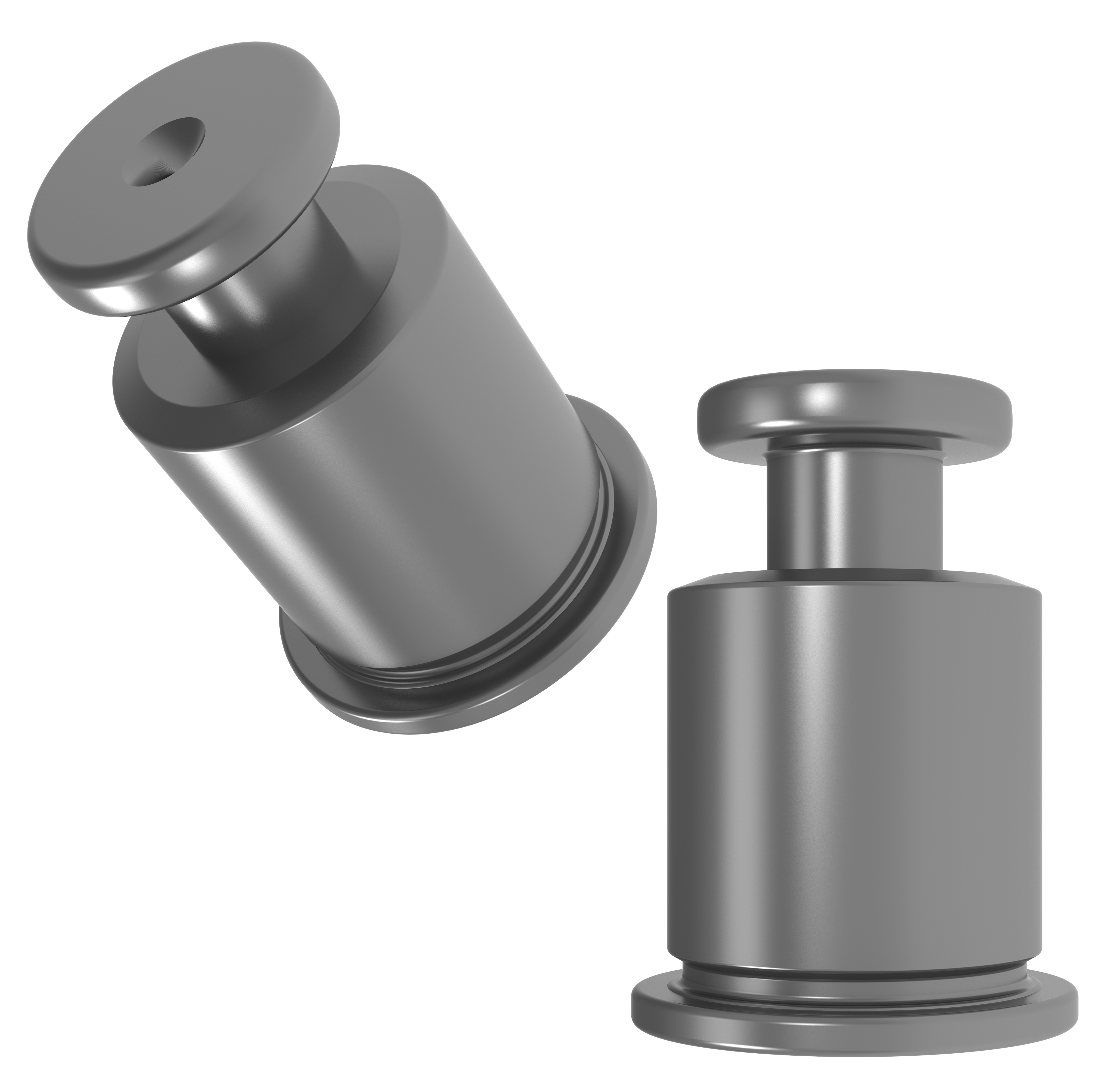

HSKCF™ and TSKSF™ standoffs can be used for spacing or mounting of replaceable components.
  • Allow detachable spacing of two sheets
  • Clinch feature mounts fastener permanently and flush into metal sheet
  • Unique barrel design allows for quick attachment and detachment
  • Makes horizontal or vertical component mounting possible
Unit of Measure

Panel 1 (Bottom) Sheet Thickness Min.

 N/A 1.5 mm

Panel 1 (Bottom) Mounting Hole B + 0.08

 N/A 6.36 mm

Panel 2 (Top) Thickness Range

 N/A 1.45 to 1.62 mm

Panel 2 (Top) Mounting Hole A1 Nom.

 N/A 1.5 mm

Panel 2 (Top) Mounting Hole A2 ± 0.08

 N/A 3 mm

Panel 2 (Top) Mounting Hole A3 ± 0.08

 N/A 5 mm

Panel 2 (Top) Mounting Hole A4 Min.

 N/A 3.63 mm a1326.jpg
Panel 1 (Bottom) Sheet Hardness Max.1 N/A HRB 70 / HB 125

Panel 2 (Top) Material

 N/A Any

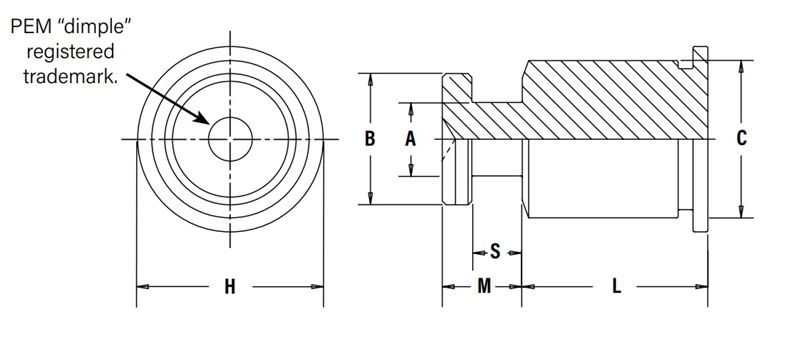

A ± 0.08

 N/A 2.51 mm HSKCF---TSKSF--dimensional-drawing.jpg

B ± 0.08

 N/A 4.25 mm

C Max.

 N/A 6.34 mm

D Anvil Hole + 0.08

 N/A 6.44 mm

H Nom.

 N/A 7.25 mm

L - Length ± 0.13

 N/A 6 mm

M Max.

 N/A 3.93 mm

S ± 0.08

 N/A 1.9 mm

Panel 1 (Bottom) Edge Distance C1 Min.

 N/A 7.1 mm a1324.jpg

Panel 1 (Bottom) Location Tolerance Max.

 N/A ±.130 mm

Panel 2 (Top) Edge Distance C2 Min.

 N/A 4.1 mm

Standard Material

 N/A 300 Series Stainless Steel

Standard Finish

 N/A Passivated and/or Tested Per ASTM A380

CAD Supplier

 N/A PennEngineering® (PEM®)
  • 1 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
