PEM RT® Free-Running Locking Blind Standoffs - Type SO - Metric
PEM RT® Free-Running Locking Standoffs

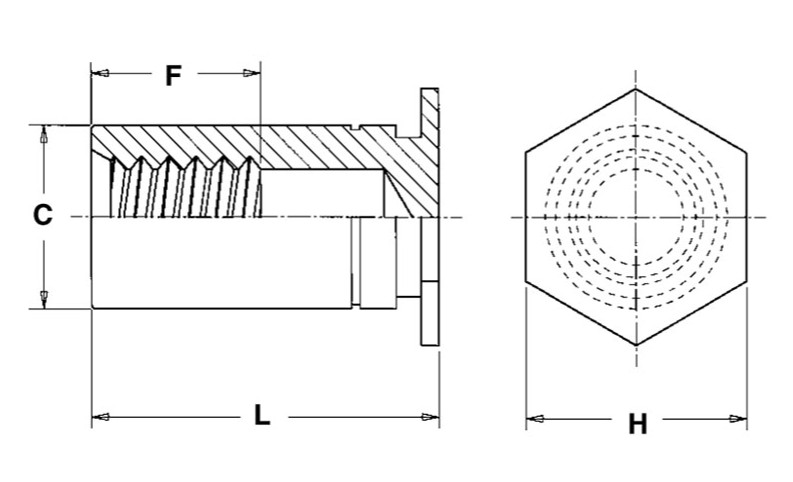

Part # |
Thread Size x Pitch |
Hole Size in Sheet + 0.08 |
C - 0.13 |
H Nom. |
L - Length + 0.05 –0.13 |
Fastener Material |
Standard Finish |
CAD |
|---|---|---|---|---|---|---|---|---|
| BSO-RT3.5M3-10ZI | Thread Size x Pitch N/A M3 x 0.5 | Hole Size in Sheet + 0.08 N/A 5.41 mm | C - 0.13 N/A 5.39 mm | H Nom. N/A 6.4 mm | L - Length + 0.05 –0.13 N/A 10 mm | Fastener Material N/A Hardened Carbon Steel | Standard Finish N/A Zinc Plated per ASTM B633, SC1 (5μm), Type III Colorless |
CAD
N/A
|
| BSOS-RTM4-14ZI | Thread Size x Pitch N/A M4 x 0.7 | Hole Size in Sheet + 0.08 N/A 7.14 mm | C - 0.13 N/A 7.12 mm | H Nom. N/A 7.9 mm | L - Length + 0.05 –0.13 N/A 14 mm | Fastener Material N/A 300 Series Stainless Steel | Standard Finish N/A Zinc Plated per ASTM B633, SC1 (5µm), Type III Colorless |
CAD
N/A
|
