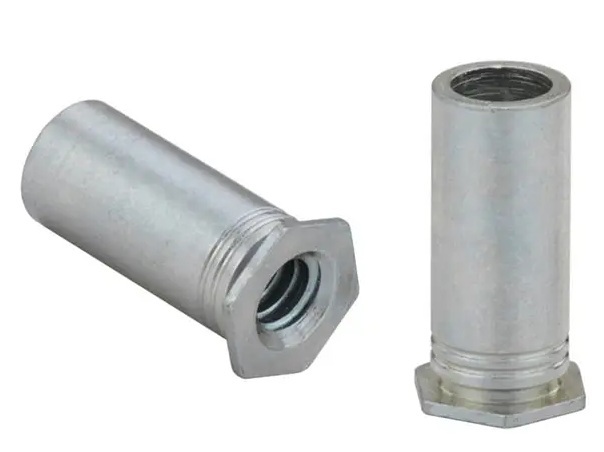

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes - and become permanently mounted in the thin sheet.
PEM® brand thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.
PEM® brand thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.
Unit of Measure
Thread Size x Pitch |
N/A M2.5 x 0.45 - 6H |
Thread Code |
N/A M2.5 |
Length Code |
N/A 8 |
Min. Sheet Thickness |
N/A 1.02 mm |
Hole Size in Sheet + 0.08 |
N/A 4.22 mm |
C - 0.13 |
N/A 4.20 mm |
D ± 0.25 |
N/A 0.00 mm |
H Nom. |
N/A 4.8 mm |
L - Length +0.05 –0.13 |
N/A 8 mm |
For Use in Sheet Hardness1 | N/A HRB 80 |
Thread Specification |
N/A Internal, ANSI/ASME B1.13M, 6H |
Fastener Material |
N/A Carb & Temp Low Carbon Steel |
Standard Finish |
N/A Zinc Plus Clear Chromate |
CAD Supplier |
N/A PennEngineering® (PEM®) |
- 1 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
