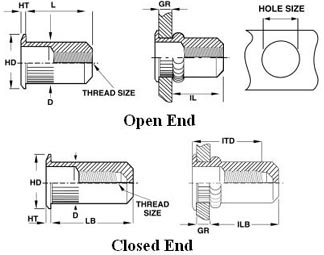

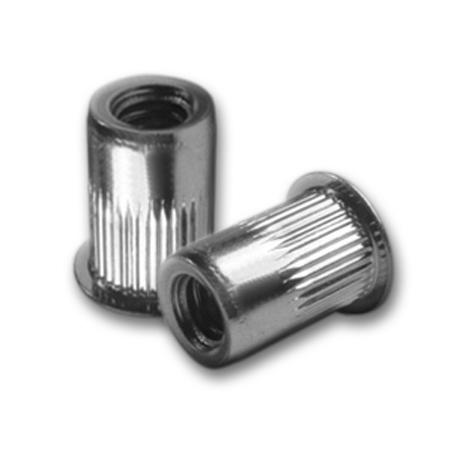

Large Flange Knurled Body Thin Wall Series

Grip range can be affected by parent material and hole size. Sherex by PEM recommends trial installations to determine the proper grip range for the application. Contact Sherex by PEM for details.

CAL style rivet nuts are available in sealed, closed end, and wedge head designs by special order.

Special finish or material available upon request

Sherex by PEM rivet nuts are compatible with the following hardware:
GRADE 2, GRADE 5, CLASS 8.8, and CLASS 9.8
Please contact Sherex by PEM when using other grade fasteners

Items may not always be in stock. Contact Sherex by PEM for current availability.
1 - 25 of 368 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Compare Items Search by Specification

Part #

Thread Size

Grip Range
(Min.-Max.)

L ±.38
(mm)

D (Max.)
(mm)

LB ±.38
(mm)

Hole Size
+.15/-.000 (mm)

CAD

Length

CAL3-470-2.0(mt1.10) N/A M4x0.7 ISO N/A 0.50-2.00 N/A 10.67 N/A 6.73 N/A 18.80 N/A 6.75 N/A CAD Icon (for items table) N/A 10.67 mm
CAL3-580-3.3(mt1.10) N/A M5x0.8 ISO N/A 0.50-3.30 N/A 12.07 N/A 7.52 N/A 25.15 N/A 7.60 N/A CAD Icon (for items table) N/A 12.07 mm
CAL3-610-4.2(mt1.10) N/A M6x1.0 ISO N/A 0.70-4.20 N/A 14.73 N/A 9.91 N/A 30.23 N/A 10.00 N/A CAD Icon (for items table) N/A 14.73 mm
CAL3-8125-3.8(mt1.10) N/A M8x1.25 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-1015-3.8(mt1.10) N/A M10x1.5 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-470-2.0(mt1.20) N/A M4x0.7 ISO N/A 0.50-2.00 N/A 10.67 N/A 6.73 N/A 18.80 N/A 6.75 N/A CAD Icon (for items table) N/A 10.67 mm
CAL3-580-3.3(mt1.20) N/A M5x0.8 ISO N/A 0.50-3.30 N/A 12.07 N/A 7.52 N/A 25.15 N/A 7.60 N/A CAD Icon (for items table) N/A 12.07 mm
CAL3-610-4.2(mt1.20) N/A M6x1.0 ISO N/A 0.70-4.20 N/A 14.73 N/A 9.91 N/A 30.23 N/A 10.00 N/A CAD Icon (for items table) N/A 14.73 mm
CAL3-8125-3.8(mt1.20) N/A M8x1.25 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-1015-3.8(mt1.20) N/A M10x1.5 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-470-2.0(mt1.30) N/A M4x0.7 ISO N/A 0.50-2.00 N/A 10.67 N/A 6.73 N/A 18.80 N/A 6.75 N/A CAD Icon (for items table) N/A 10.67 mm
CAL3-580-3.3(mt1.30) N/A M5x0.8 ISO N/A 0.50-3.30 N/A 12.07 N/A 7.52 N/A 25.15 N/A 7.60 N/A CAD Icon (for items table) N/A 12.07 mm
CAL3-610-4.2(mt1.30) N/A M6x1.0 ISO N/A 0.70-4.20 N/A 14.73 N/A 9.91 N/A 30.23 N/A 10.00 N/A CAD Icon (for items table) N/A 14.73 mm
CAL3-8125-3.8(mt1.30) N/A M8x1.25 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-1015-3.8(mt1.30) N/A M10x1.5 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-470-2.0(mt1.40) N/A M4x0.7 ISO N/A 0.50-2.00 N/A 10.67 N/A 6.73 N/A 18.80 N/A 6.75 N/A CAD Icon (for items table) N/A 10.67 mm
CAL3-580-3.3(mt1.40) N/A M5x0.8 ISO N/A 0.50-3.30 N/A 12.07 N/A 7.52 N/A 25.15 N/A 7.60 N/A CAD Icon (for items table) N/A 12.07 mm
CAL3-610-4.2(mt1.40) N/A M6x1.0 ISO N/A 0.70-4.20 N/A 14.73 N/A 9.91 N/A 30.23 N/A 10.00 N/A CAD Icon (for items table) N/A 14.73 mm
CAL3-8125-3.8(mt1.40) N/A M8x1.25 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-1015-3.8(mt1.40) N/A M10x1.5 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-470-2.0(mt1.50) N/A M4x0.7 ISO N/A 0.50-2.00 N/A 10.67 N/A 6.73 N/A 18.80 N/A 6.75 N/A CAD Icon (for items table) N/A 10.67 mm
CAL3-580-3.3(mt1.50) N/A M5x0.8 ISO N/A 0.50-3.30 N/A 12.07 N/A 7.52 N/A 25.15 N/A 7.60 N/A CAD Icon (for items table) N/A 12.07 mm
CAL3-610-4.2(mt1.50) N/A M6x1.0 ISO N/A 0.70-4.20 N/A 14.73 N/A 9.91 N/A 30.23 N/A 10.00 N/A CAD Icon (for items table) N/A 14.73 mm
CAL3-8125-3.8(mt1.50) N/A M8x1.25 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
CAL3-1015-3.8(mt1.50) N/A M10x1.5 ISO N/A 0.70-3.80 N/A 17.53 N/A 13.46 N/A 35.31 N/A 13.50 N/A CAD Icon (for items table) N/A 17.53 mm
