CFKM Series - Full Hex Body, Small Flange, Closed End
Full Metric Rivet Nuts

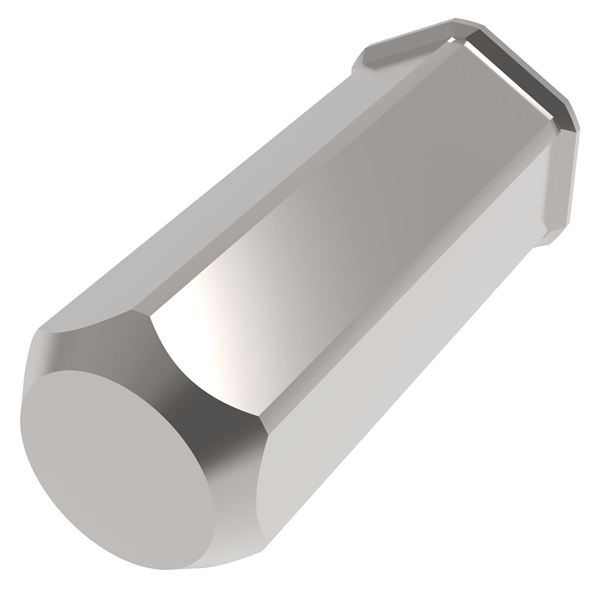

Sherex by PEM's full hex body, small flange full metric rivet nuts are perfect for applications in high clamp load environments. Full hex body rivet nuts are the highest perfoming rivet nuts with their ability to resist pull out, spin out, and torque out compared to round body rivet nuts. Closed end rivet nuts will eliminate dust and liquid from entering through the threads of the rivet nut. Available in sizes M4 - M12 thread sizes.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CFKM2-470-2.5B | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 17.80 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CFKM2-580-3.0B | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 20.20 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CFKM2-610-3.5B | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 23.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CFKM2-8125-3.5B | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 28.30 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CFKM2-1015-3.5B | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 35.00 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CFKM2-12175-4.0B | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 38.00 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
