CKKM Series - Round Body, Knurled , Closed End
Full Metric Rivet Nuts

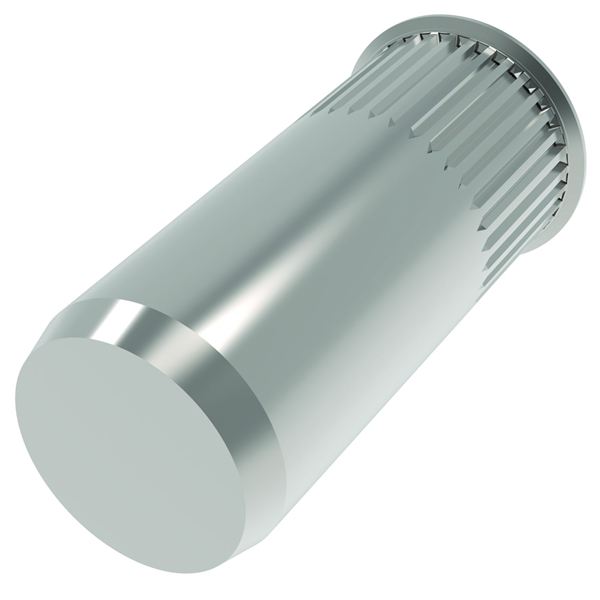

Sherex by PEM's round body, small flange full metric rivet nuts are perfect for all applications. The knurls on the body on body of the rivet nuts help resistance spin out once installed. The small flange makes for a near flush installation on the base material. Closed end rivet nuts will eliminate dust and liquid from entering through the threads of the rivet nut.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CKKM2-470-2.5B | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 17.70 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CKKM2-580-3.0B | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 19.85 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKKM2-610-3.0B | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 21.30 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKKM2-8125-3.0B | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 25.30 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKKM2-1015-3.5B | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 28.30 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKKM2-12175-4.5B | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 34.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
