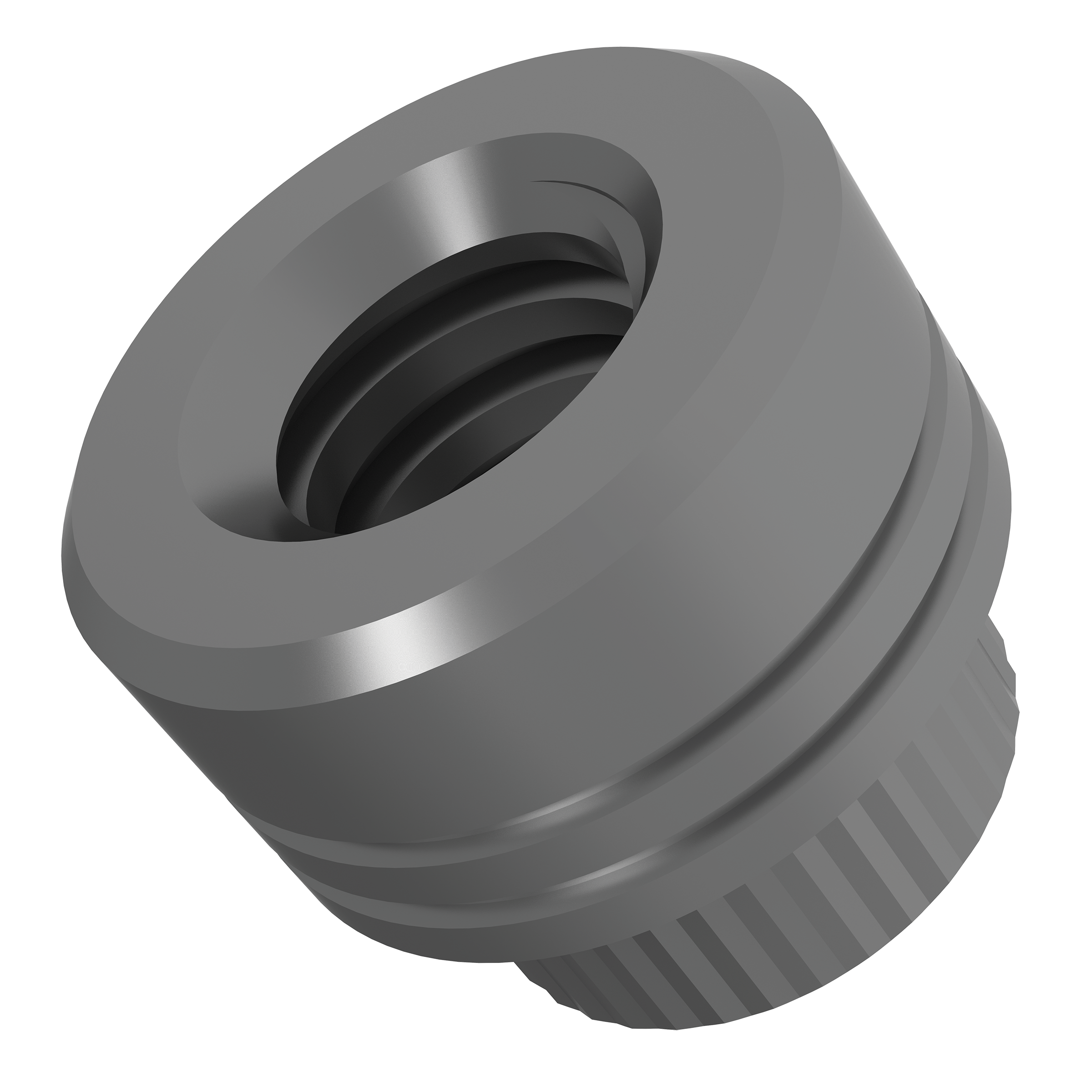

  • Rivet Bush
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Compare Items

Part #

Thread Size x Pitch

Hole Size in Sheet + 0.08

A ±0.13

C Max.

E Nom.

Fastener Material

Standard Finish

CAD

N/A M6 x 1.0 - 6H N/A 9.63 mm N/A 1.80 mm N/A 9.53 mm N/A 12.70 mm N/A Carbon Steel N/A Zinc Plated, 5µm, Colorless N/A CAD Icon (for items table)
N/A M5 x 0.8 - 6H N/A 8.03 mm N/A 3.70 mm N/A 7.93 mm N/A 11.10 mm N/A Lead-Free Carbon Steel N/A Zinc Plated, 5µm, Colorless N/A CAD Icon (for items table)
N/A M3 x 0.5 - 6H N/A 5.64 mm N/A 2.20 mm N/A 5.54 mm N/A 7.93 mm N/A Carbon Steel N/A Zinc Plated, 5µm, Colorless N/A CAD Icon (for items table)
N/A M4 x 0.7 - 6H N/A 6.83 mm N/A 1.60 mm N/A 6.73 mm N/A 9.52 mm N/A Lead-Free Carbon Steel N/A Zinc Plated, 5µm, Colorless N/A CAD Icon (for items table)
