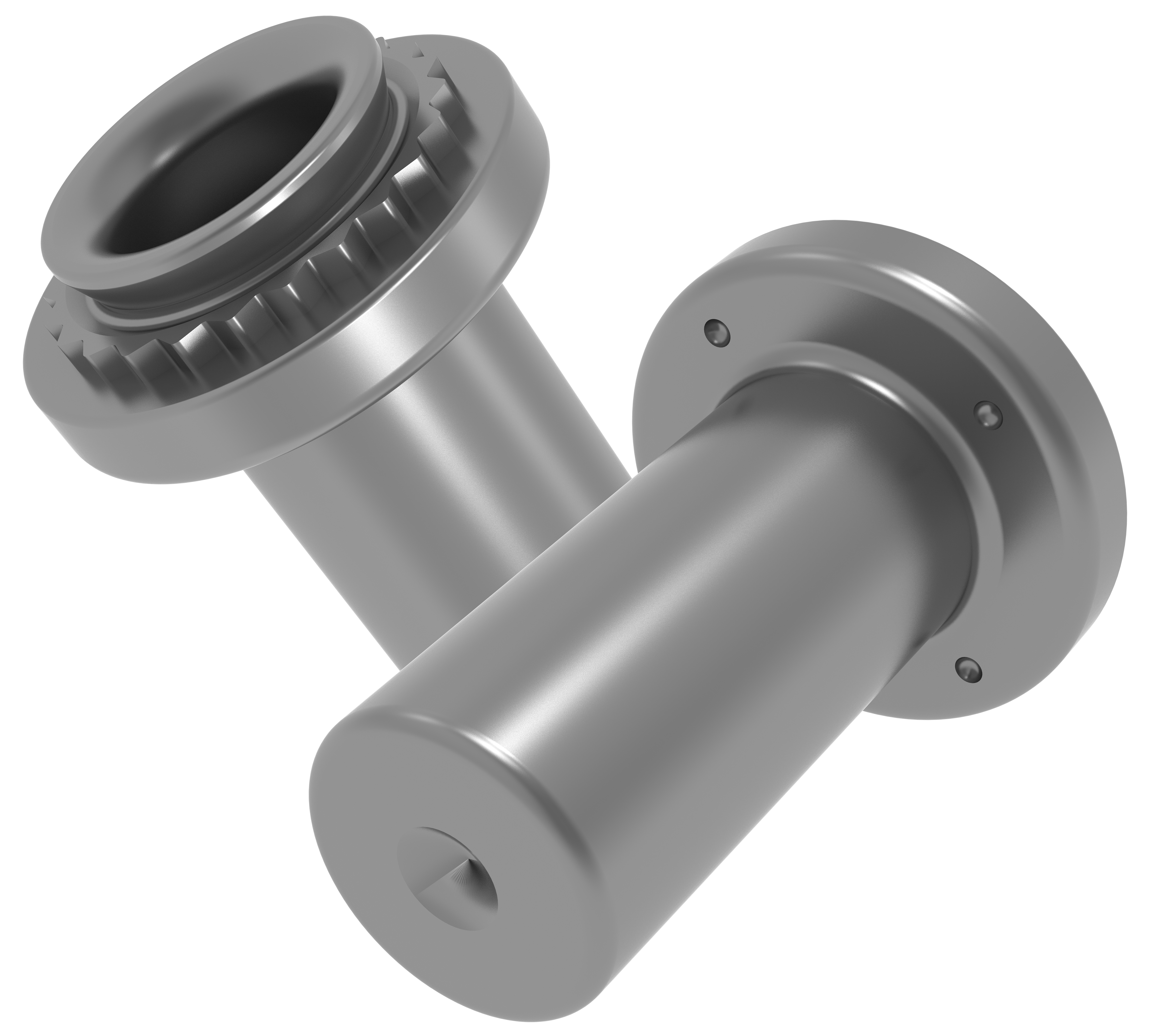

  • BF-Nuts
Fine Finish Blind nuts (BF™/BFS™) for high-voltage applications where metal chips and conductive fines could result in breakdown or arcing.
  • Designed for sensitive applications where metal chips cannot be tolerated
  • Oversized mounting holes to provide better performance in soft material
  • Large flange design provides greater bearing surface
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Compare Items

Part #

Thread Size x Pitch

A (Shank) Max.

Hole Size in Sheet + 0.08

E ± 0.25

T ± 0.25

Fastener Material

Standard Finish

CAD

N/A M3 x 0.5 N/A 0.97 mm N/A 5.41 mm N/A 7.95 mm N/A 11.2 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M3 x 0.5 N/A 1.38 mm N/A 5.41 mm N/A 7.95 mm N/A 11.2 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M4 x 0.7 N/A 0.97 mm N/A 6.35 mm N/A 8.75 mm N/A 12.5 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M4 x 0.7 N/A 1.38 mm N/A 6.35 mm N/A 8.75 mm N/A 12.5 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M5 x 0.8 N/A 0.97 mm N/A 8.75 mm N/A 11.1 mm N/A 16.0 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M5 x 0.8 N/A 1.38 mm N/A 8.75 mm N/A 11.1 mm N/A 16.0 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M6 x 1 N/A 1.38 mm N/A 10.5 mm N/A 14.0 mm N/A 18.3 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M6 x 1 N/A 2.21 mm N/A 10.5 mm N/A 14.0 mm N/A 18.3 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M8 x 1.25 N/A 2.21 mm N/A 12.7 mm N/A 16.35 mm N/A 22.0 mm N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SCI (5µm), Type III, Colorless N/A CAD Icon (for items table)
N/A M3 x 0.5 N/A 0.97 mm N/A 5.41 mm N/A 7.95 mm N/A 11.2 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M3 x 0.5 N/A 1.38 mm N/A 5.41 mm N/A 7.95 mm N/A 11.2 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M4 x 0.7 N/A 0.97 mm N/A 6.35 mm N/A 8.75 mm N/A 12.5 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M4 x 0.7 N/A 1.38 mm N/A 6.35 mm N/A 8.75 mm N/A 12.5 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M5 x 0.8 N/A 0.97 mm N/A 8.75 mm N/A 11.1 mm N/A 16.0 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M5 x 0.8 N/A 1.38 mm N/A 8.75 mm N/A 11.1 mm N/A 16.0 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M6 x 1 N/A 1.38 mm N/A 10.5 mm N/A 14.0 mm N/A 18.3 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M6 x 1 N/A 2.21 mm N/A 10.5 mm N/A 14.0 mm N/A 18.3 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
N/A M8 x 1.25 N/A 2.21 mm N/A 12.7 mm N/A 16.35 mm N/A 22.0 mm N/A 300 Series Stainless Steel N/A Passivated and/or Tested Per ASTM A380 N/A CAD Icon (for items table)
