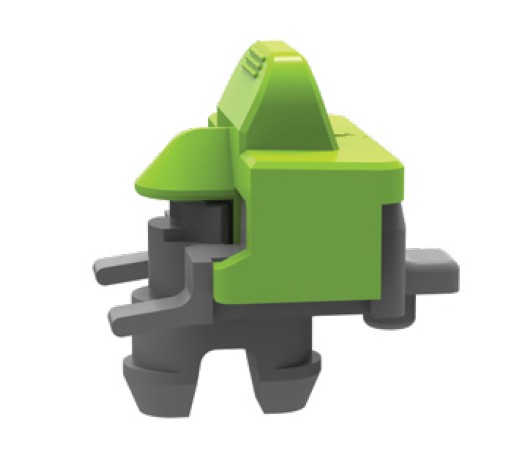

M2LS™ Press-Fit Board Latch
M.2 Board Latch Fasteners
- Toolless installation
- Quick assembly time
- Single press automatic locking
- Reliable, vertical-block structure
- Flexible maintenance
- User friendly design
Part # |
M.2 Card Thickness (T) ±0.08 |
Board to Board Gap (H) Nom. |
Mother Board Thickness (P) ±0.15 |
CAD |
|---|---|---|---|---|
| M2LS08-160660-U | M.2 Card Thickness (T) ±0.08 N/A 0.8 mm | Board to Board Gap (H) Nom. N/A 6.6 mm | Mother Board Thickness (P) ±0.15 N/A 1.6 mm |
CAD
N/A
|
| M2LS08-200390-375C | M.2 Card Thickness (T) ±0.08 N/A 0.8 mm | Board to Board Gap (H) Nom. N/A 3.9 mm | Mother Board Thickness (P) ±0.15 N/A 2 mm |
CAD
N/A
|
| M2LS08-240660-375C | M.2 Card Thickness (T) ±0.08 N/A 0.8 mm | Board to Board Gap (H) Nom. N/A 6.6 mm | Mother Board Thickness (P) ±0.15 N/A 2.4 mm |
CAD
N/A
|
| M2LS08-200250-1585C | M.2 Card Thickness (T) ±0.08 N/A 0.8 mm | Board to Board Gap (H) Nom. N/A 2.5 mm | Mother Board Thickness (P) ±0.15 N/A 2 mm |
CAD
N/A
|
| M2LS08-235390-U | M.2 Card Thickness (T) ±0.08 N/A 0.8 mm | Board to Board Gap (H) Nom. N/A 3.9 mm | Mother Board Thickness (P) ±0.15 N/A 2.35 mm |
CAD
N/A
|
