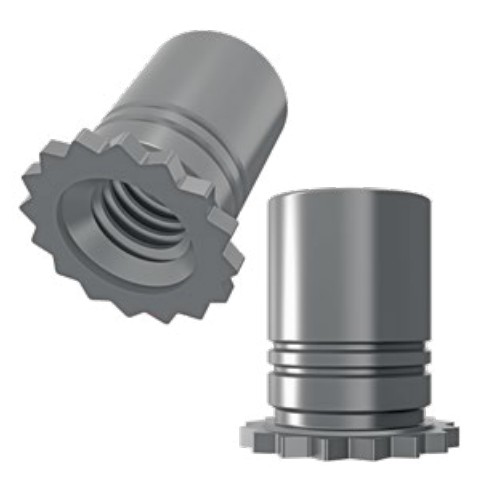

  • SOK_SOKS-Threaded-Standoffs
The knurled head design of the SOK™ and SOKS™ standoffs displace minimal sheet material during installation allowing for installation in close-to-edge applications.
1 - 25 of 30 | Results Per Page | View | Unit of Measure
1 2
Compare Items

Part #

Thread Size

Hole Size in Sheet + .003 - .000

C Max.

H Nom.

L + .002 -.005

Fastener Material

Standard Finish

CAD

N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .125 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .187 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .250 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .312 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .125 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .187 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .250 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .312 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .125 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .187 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .250 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .312 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .138-32 (#6-32) N/A .213 in N/A .212 in N/A .250 in N/A .187 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .138-32 (#6-32) N/A .213 in N/A .212 in N/A .250 in N/A .250 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .138-32 (#6-32) N/A .213 in N/A .212 in N/A .250 in N/A .312 in N/A Hardened Carbon Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .125 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .187 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .250 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .086-56 (#2-56) N/A .166 in N/A .165 in N/A .194 in N/A .312 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .125 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .187 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .250 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .166 in N/A .165 in N/A .194 in N/A .312 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .125 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
N/A .112-40 (#4-40) N/A .213 in N/A .212 in N/A .250 in N/A .187 in N/A 300 Series Stainless Steel N/A Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless N/A CAD Icon (for items table)
