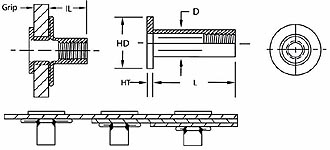

Straight Shank Slotted Body Rivet Nut Series

Sherex by PEM's straight shank, slotted body rivet nuts have increased grip ranges over other Sherex by PEM rivet nuts, and are best used in softer materials and thing material like plastic, aluminum, and composite. The difference between the prebulbed slotted body CPB Series rivet nut and the straight shank CPN Series is it can fit into a smaller hole than the prebulbed CPB Series, as the bulb of the CPB Series has a wider body. The CPN is also recommended to be installed with spin-pull tooling, while prebulbed can be used with spin-spin tooling. Both slotted body rivet nuts offer a wide grip range with its cross-nut fastening solution, and both provide superior pull-out resistance against other fasteners.

Grip range can be affected by parent material and hole size. Sherex by PEM recommends trial installations to determine the proper grip range for the application. Contact Sherex by PEM for details.

Can be installed with spin-pull tooling. See Sherex by PEM's spin-pull tooling offerings for more details.

Finish: Zinc Plated-Yellow Trivalent Chromate SFS-01-001, SC2. **Special finish or material available upon request!**

Sherex by PEM rivet nuts are compatible with the following hardware:GRADE 2, GRADE 5, CLASS 8.8, and CLASS 9.8
Please contact Sherex by PEM when using other grade fasteners.

Items may not always be in stock. Contact Sherex by PEM for current availability.
