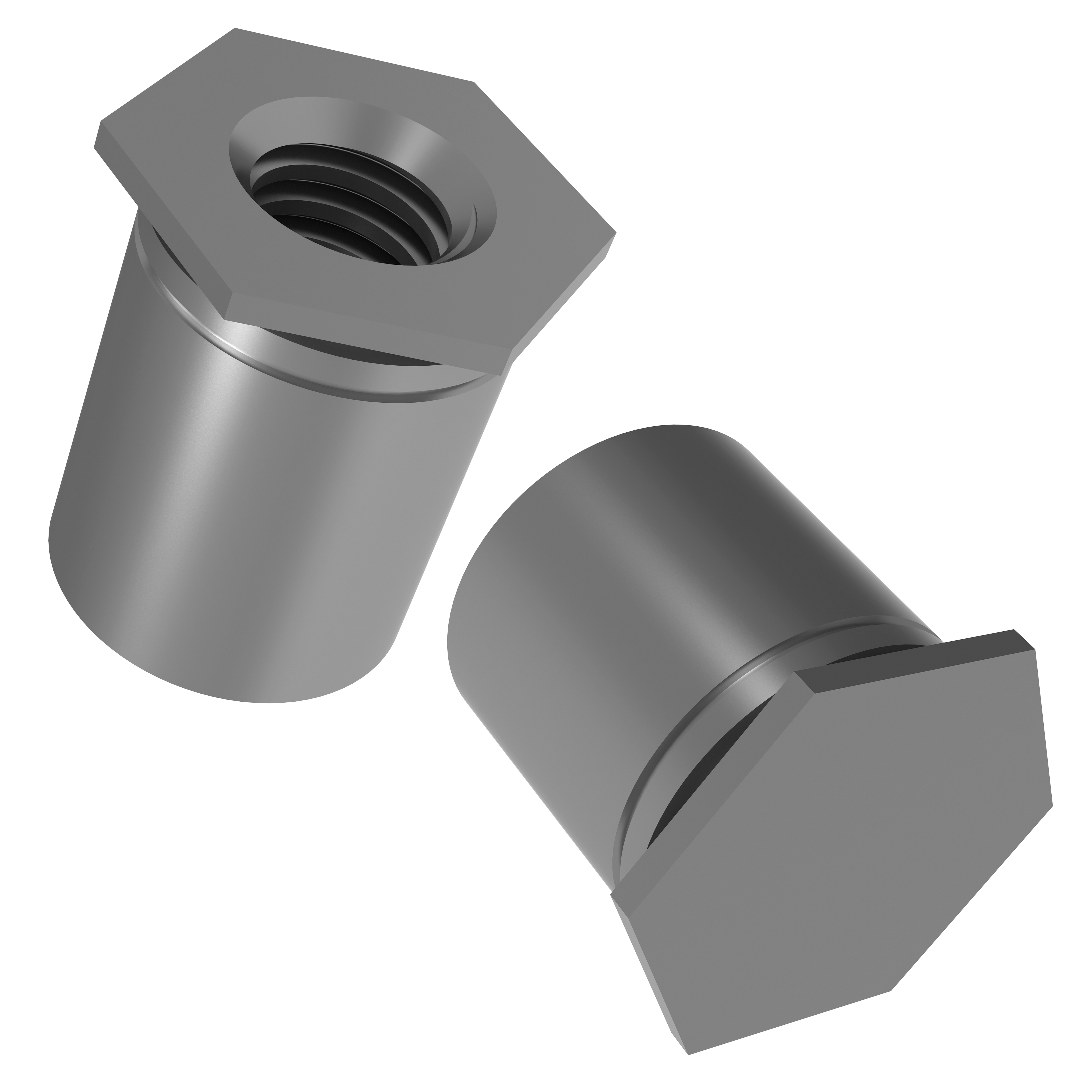

PEM RT® Free-Running Locking Thru-Hole Standoffs - Type SO - Unified
PEM RT® Free-Running Locking Standoffs
Part # |
Thread Size |
Hole Size in Sheet + .003 - .000 |

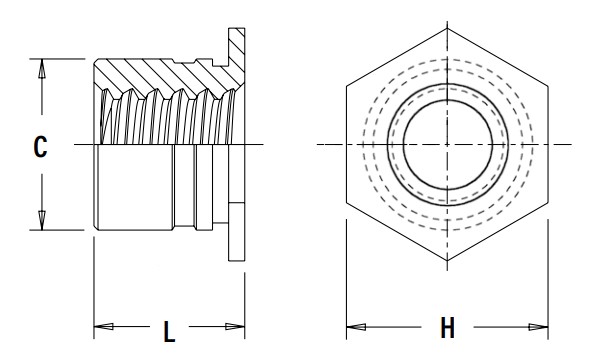

C + .000 - .005 |
H Nom. |
L - Length +.002 –.005 |
Fastener Material |
Standard Finish |
CAD |
|---|---|---|---|---|---|---|---|---|
| SO-RT440-8ZI | Thread Size N/A .112-40 (#4-40) | Hole Size in Sheet + .003 - .000 N/A .166 in | C + .000 - .005 N/A .165 in | H Nom. N/A .187 in | L - Length +.002 –.005 N/A .250 in | Fastener Material N/A Hardened Carbon Steel | Standard Finish N/A Zinc Plated per ASTM B633, SC1 (5µm), Type III Colorless |
CAD
N/A
|
| SOS-RT632-8 | Thread Size N/A .138-32 (#6-32) | Hole Size in Sheet + .003 - .000 N/A .213 in | C + .000 - .005 N/A .212 in | H Nom. N/A .250 in | L - Length +.002 –.005 N/A .250 in | Fastener Material N/A 300 Series Stainless Steel | Standard Finish N/A Pasivated and/or Tested per ASTM A380 |
CAD
N/A
|
