CFLM Series - Full Hex Body, Large Flange
Full Metric Rivet Nuts

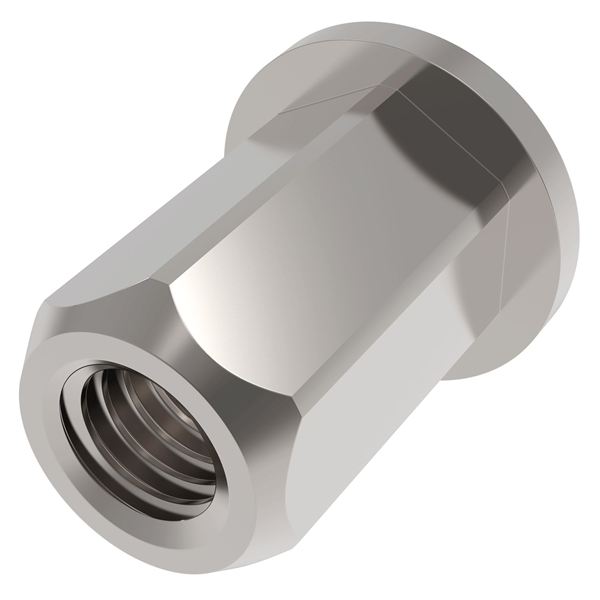

Sherex by PEM's full hex body, large flange full metric rivet nuts are perfect for applications in high clamp load environments. Full hex body rivet nuts are the highest perfoming rivet nuts with their ability to resist pull out, spin out, and torque out compared to round body rivet nuts. Available in M3 - M12 thread sizes with multiple grip ranges.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CFLM2-350-2.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 9.75 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CFLM2-350-3.5 | Thread Size N/A M3x0.5 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 11.25 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CFLM2-470-2.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 9.80 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CFLM2-470-4.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 2.5 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 12.80 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CFLM2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 12.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CFLM2-580-5.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 14.50 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CFLM2-580-8.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 17.00 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CFLM2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 14.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CFLM2-610-5.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 17.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CFLM2-610-8.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 19.70 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CFLM2-8125-3.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 16.25 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CFLM2-8125-5.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 19.25 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CFLM2-8125-8.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 21.75 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CFLM2-1015-3.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 20.80 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CFLM2-1015-6.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 6.0 mm | Length Nom. (±0.25) N/A 23.30 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CFLM2-1015-9.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 6.0 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 26.30 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CFLM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 24.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
| CFLM2-12175-7.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 7.0 mm | Length Nom. (±0.25) N/A 27.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
