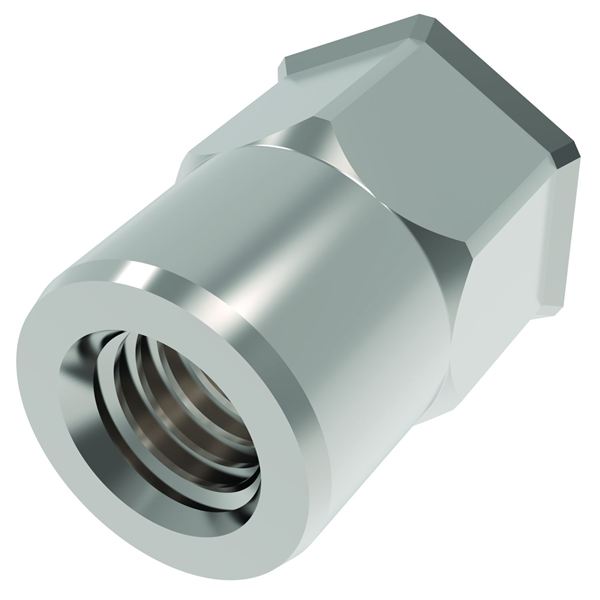

CHKI Series - Half Hex, Small Flange
Full Metric Rivet Nuts
Sherex by PEM's half hex, small flange full metric, inch hole size rivet nuts are perfect for all applications. Half hex rivet nuts have a higher spin out resistance than round body rivet nuts. The small flange will allow for a near flush installation into the base material. This part features demensions suitable for inch hole sizes.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CHKI2-470-2.0 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 10.30 mm | Hole Size (+0.1) N/A 6.4 mm |
CAD
N/A
|
| CHKI2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 11.45 mm | Hole Size (+0.1) N/A 7.3 mm |
CAD
N/A
|
| CHKI2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 14.35 mm | Hole Size (+0.1) N/A 9.7 mm |
CAD
N/A
|
| CHKI2-8125-3.3 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.9 mm | Grip Range Max N/A 3.3 mm | Length Nom. (±0.25) N/A 15.80 mm | Hole Size (+0.1) N/A 10.7 mm |
CAD
N/A
|
