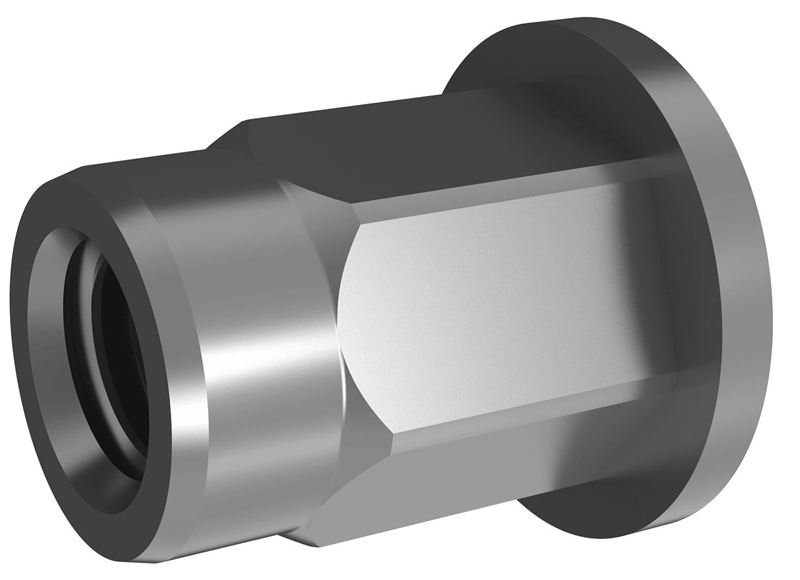

CHLM Series - Half Hex, Large Flange
Full Metric Rivet Nuts
Sherex by PEM's half hex, large flange full metric rivet nuts are perfect for all applications. Half hex rivet nuts have a higher spin out resistance than round body rivet nuts. These are some the most popular rivet nuts on the market. Available in thread sizes M3 - M12 and in multiple grip ranges.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CHLM2-350-2.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 9.75 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CHLM2-470-3.0 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 10.00 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CHLM2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 12.00 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CHLM2-580-5.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 14.50 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CHLM2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 12.75 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CHLM2-610-5.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 15.25 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CHLM2-8125-3.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 16.50 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CHLM2-8125-5.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 19.00 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CHLM2-1015-3.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 19.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CHLM2-1015-6.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 6.0 mm | Length Nom. (±0.25) N/A 22.25 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CHLM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 25.00 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
