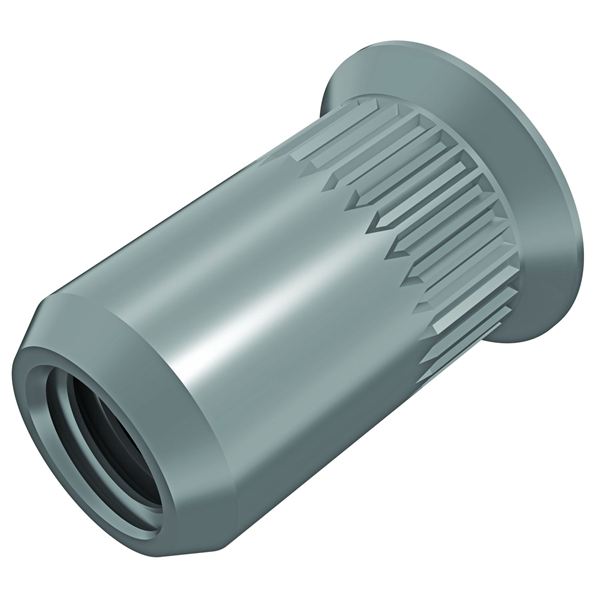

CKCM Series - Countersunk, Knurled
Full Metric Rivet Nuts
Sherex by PEM's countersunk, knurled full metric rivet nuts are perfect for all applications. When installed, countersunk rivet nuts are flush to the base material, giving an asthetic many manufacurers and assemblers desire. The knurls help resist the rivet nut from spinning in the hole under higher torque and clamp load instances.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CKCM2-350-3.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 8.80 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CKCM2-350-5.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 10.40 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CKCM2-470-3.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 11.50 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CKCM2-470-5.0 | Thread Size N/A M4x0.7 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 5.0 mm | Length Nom. (±0.25) N/A 13.00 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CKCM2-580-4.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 13.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKCM2-580-6.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 16.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKCM2-580-9.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 19.80 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKCM2-610-4.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 15.70 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKCM2-610-6.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 20.30 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKCM2-610-9.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 21.80 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKCM2-8125-4.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 17.80 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKCM2-8125-6.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 20.80 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKCM2-8125-9.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 23.75 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKCM2-1015-4.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 21.80 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKCM2-1015-6.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 24.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKCM2-1015-9.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 28.00 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKCM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 25.90 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
| CKCM2-12175-7.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 4.5 mm | Grip Range Max N/A 7.5 mm | Length Nom. (±0.25) N/A 29.00 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
