CKKM Series - Round Body, Knurled
Full Metric Rivet Nuts

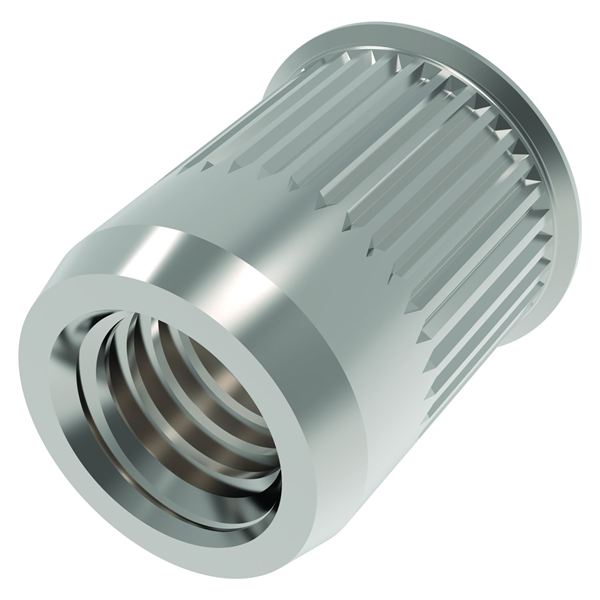

Sherex by PEM's round body, small flange full metric rivet nuts are perfect for all applications. The knurls on the body on body of the rivet nuts help resistance spin out once installed. The small flange makes for a near flush installation on the base material. Available in M3 - M12 thread sizes with multiple grip ranges.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CKKM2-350-2.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 9.00 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CKKM2-350-3.5 | Thread Size N/A M3x0.5 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 10.50 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CKKM2-470-2.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 10.70 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CKKM2-470-4.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 2.5 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 12.50 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CKKM2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 12.75 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKKM2-580-5.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 14.90 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKKM2-580-8.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 17.40 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CKKM2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 13.80 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKKM2-610-5.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 17.40 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKKM2-610-8.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 19.90 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CKKM2-8125-3.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 17.25 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKKM2-8125-5.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 18.90 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKKM2-8125-8.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 21.40 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CKKM2-1015-3.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 20.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKKM2-1015-6.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 6.0 mm | Length Nom. (±0.25) N/A 23.50 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKKM2-1015-9.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 6.0 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 26.50 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CKKM2-12175-4.5 | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 25.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
| CKKM2-12175-7.5 | Thread Size N/A M12x1.75 | Grip Range Min N/A 4.5 mm | Grip Range Max N/A 7.5 mm | Length Nom. (±0.25) N/A 28.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
