COCM Series - Countersunk, Smooth
Full Metric Rivet Nuts

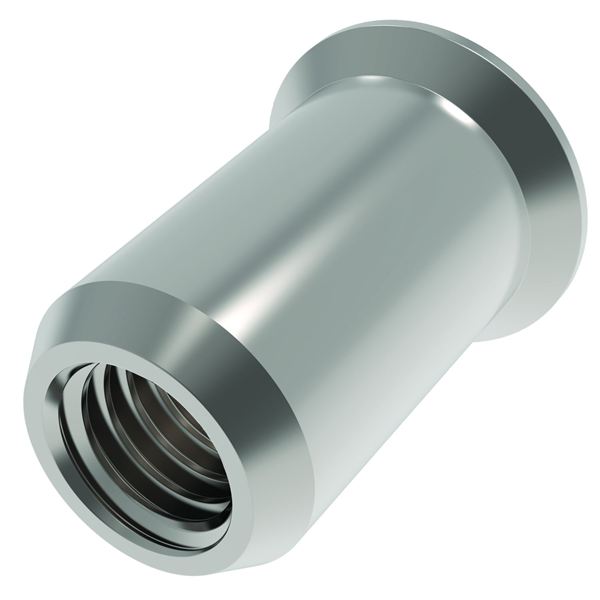

Sherex by PEM's countersunk, smooth body full metric rivet nuts are perfect for all applications. When installed, countersunk rivet nuts are flush to the base material, giving an asthetic many manufacurers and assemblers desire. Available in thread sizes M3 - M12 and in multiple grip ranges.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| COCM2-350-3.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 8.80 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| COCM2-350-5.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 10.40 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| COCM2-470-3.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 11.50 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COCM2-470-5.0 | Thread Size N/A M4x0.7 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 5.0 mm | Length Nom. (±0.25) N/A 13.00 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COCM2-580-4.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 13.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COCM2-580-6.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 16.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COCM2-580-9.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 19.80 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COCM2-610-4.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 15.70 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COCM2-610-6.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 20.30 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COCM2-610-9.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 21.80 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COCM2-8125-4.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 17.80 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COCM2-8125-6.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 20.80 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COCM2-8125-9.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 23.75 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COCM2-1015-4.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 21.80 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COCM2-1015-6.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 6.5 mm | Length Nom. (±0.25) N/A 24.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COCM2-1015-9.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 6.5 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 28.00 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COCM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 25.90 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
| COCM2-12175-7.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 4.5 mm | Grip Range Max N/A 7.5 mm | Length Nom. (±0.25) N/A 29.00 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
