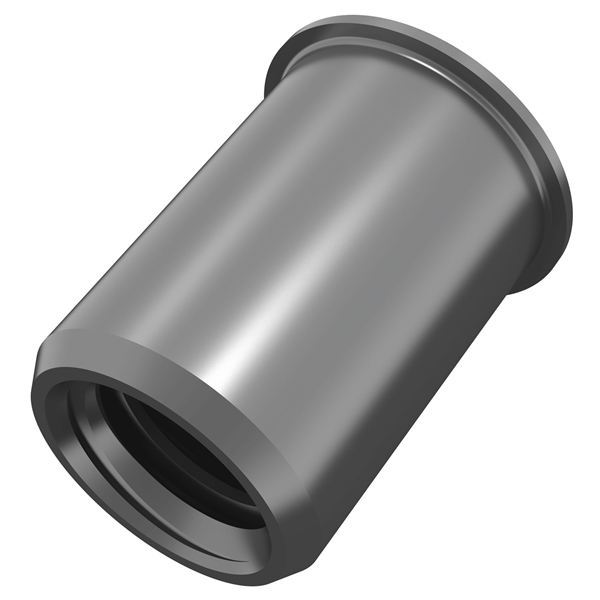

COKI Series - Round, Smooth Body
Full Metric Rivet Nuts
Sherex by PEM's smooth, round body, small flange full metric rivet nuts are perfect for light duty applications that don't experience high torque or clamp load. The small flange will allow for a near flush installation into the base material. This part features demensions suitable for inch hole sizes.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| COKI2-350-1.5 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 1.5 mm | Length Nom. (±0.25) N/A 8.40 mm | Hole Size (+0.1) N/A 4.7 mm |
CAD
N/A
|
| COKI2-470-2.0 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 10.20 mm | Hole Size (+0.1) N/A 6.4 mm |
CAD
N/A
|
| COKI2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 11.25 mm | Hole Size (+0.1) N/A 7.1 mm |
CAD
N/A
|
| COKI2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 14.30 mm | Hole Size (+0.1) N/A 9.5 mm |
CAD
N/A
|
| COKI2-8125-4.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.8 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 16.60 mm | Hole Size (+0.1) N/A 10.5 mm |
CAD
N/A
|
