COLM Series - Round, Smooth Body
Full Metric Rivet Nuts

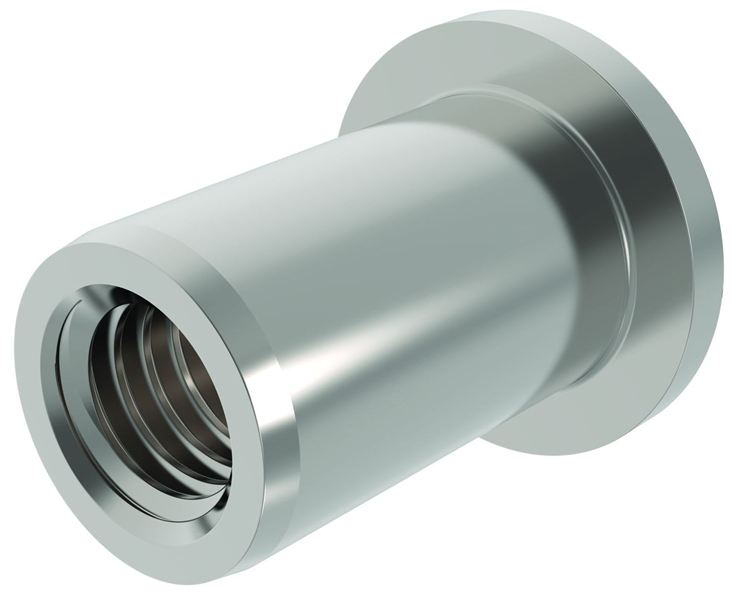

Sherex by PEM's smooth, round body, large flange full metric rivet nuts are perfect for light duty applications that don't experience high torque or clamp load. Rivet nuts help assemblers decrease assembly times, rework, or secondary processes compared to weld nuts. Available in thread sizes M3 - M12 and in multiple grip ranges.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| COLM2-350-2.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 9.75 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| COLM2-350-3.5 | Thread Size N/A M3x0.5 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 11.25 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| COLM2-470-2.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 11.00 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COLM2-470-4.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 2.5 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 12.50 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COLM2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 12.75 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COLM2-580-5.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 15.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COLM2-580-8.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 18.80 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COLM2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 14.30 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COLM2-610-5.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 17.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COLM2-610-8.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 20.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COLM2-8125-3.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 16.30 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COLM2-8125-5.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 19.30 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COLM2-8125-8.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 5.5 mm | Grip Range Max N/A 8.0 mm | Length Nom. (±0.25) N/A 22.30 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COLM2-1015-3.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 20.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COLM2-1015-6.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 6.0 mm | Length Nom. (±0.25) N/A 23.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COLM2-1015-9.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 6.0 mm | Grip Range Max N/A 9.0 mm | Length Nom. (±0.25) N/A 25.75 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COLM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 24.70 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
| COLM2-12175-7.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 4.0 mm | Grip Range Max N/A 7.0 mm | Length Nom. (±0.25) N/A 27.70 mm | Hole Size (+0.1) N/A 16.0 mm |
