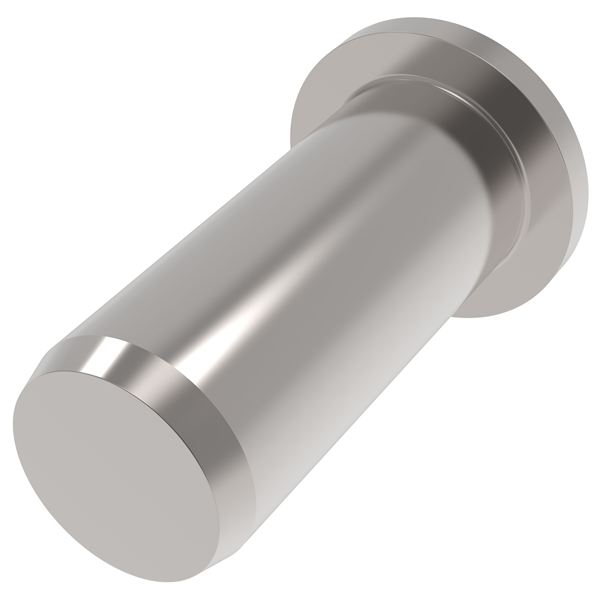

COLM Series - Round, Smooth Body, Closed End
Full Metric Rivet Nuts
Sherex by PEM's smooth, round body, large flange full metric rivet nuts are perfect for light duty applications that don't experience high torque or clamp load. Rivet nuts help assemblers decrease assembly times, rework, or secondary processes compared to weld nuts. Closed end will eliminate dust and liquid from entering through the threads of the rivet nut.
Part # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| COLM2-470-2.5B | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.5 mm | Length Nom. (±0.25) N/A 16.90 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COLM2-580-3.0B | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 18.70 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COLM2-610-3.0B | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 21.20 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COLM2-8125-3.0B | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 24.20 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COLM2-1015-3.5B | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 30.70 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COLM2-12175-4.0B | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 36.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
