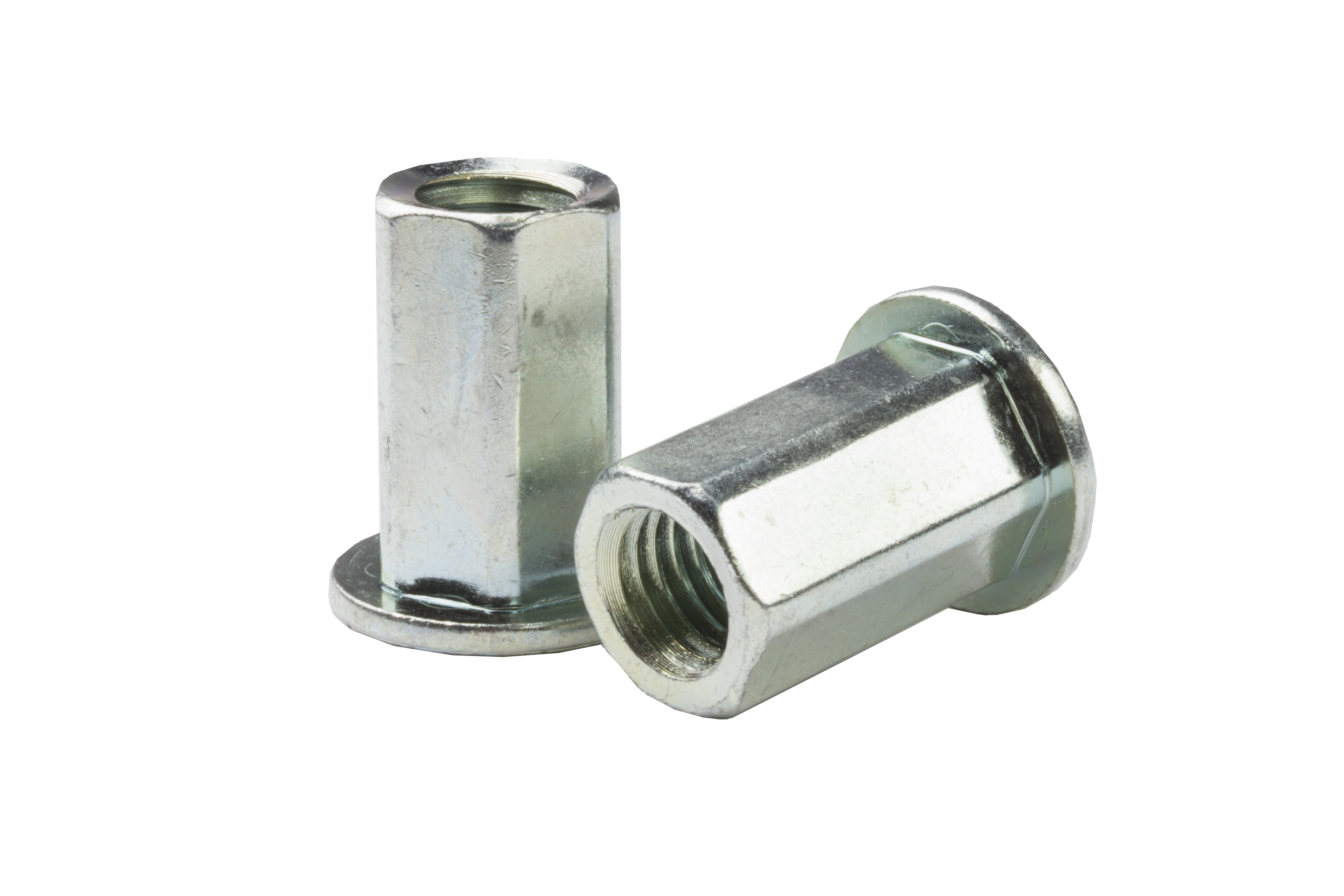

LRGH Series - inch
Hex Body Rivet Nuts
- Large flange for increased strength in punched holes
- Large sizes: 1/2" - 3/4", M12-M16
Part # |
Material |
Thread Size |
Grip Range
|
Length (L)
|
Installed Length (IL)
|
Hole Size (A/F)
|
CAD |
|---|---|---|---|---|---|---|---|
| LRGH2-5013-177 | Material N/A Steel 1010/1022 | Thread Size N/A 1/2 - 13 UNC |
Grip Range (Min. - Max.) N/A .040 - .177 |
Length (L) ±.015 N/A 1.181 |
Installed Length (IL) Ref. N/A .866 |
Hole Size (A/F) +.010/-.000 N/A .656 |
CAD
N/A
|
| LRGH2-6211-200 | Material N/A Steel 1010/1022 | Thread Size N/A 5/8 - 11 UNC |
Grip Range (Min. - Max.) N/A .080 - .200 |
Length (L) ±.015 N/A 1.260 |
Installed Length (IL) Ref. N/A .965 |
Hole Size (A/F) +.010/-.000 N/A .827 |
CAD
N/A
|
